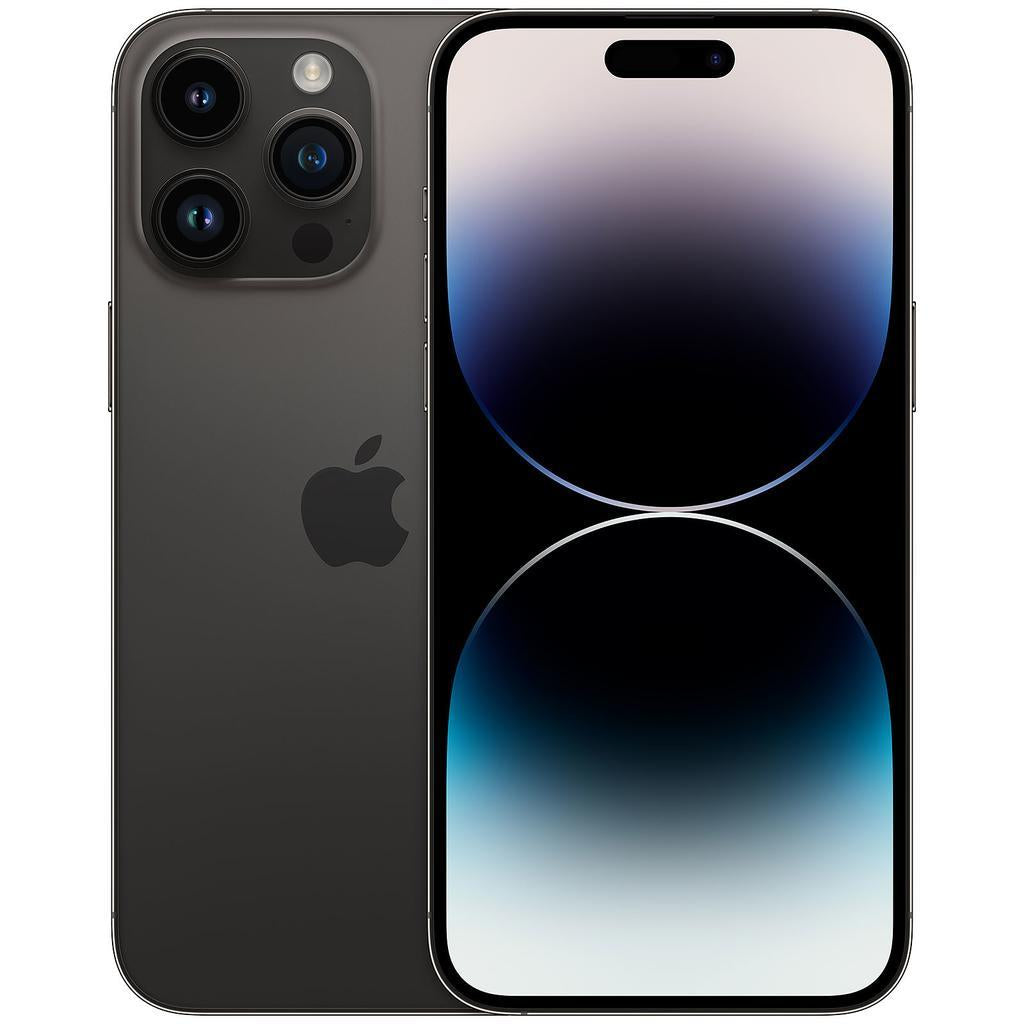

iPhone 14 Pro Max

Display
• Type: Super Retina XDR OLED, all-screen with Dynamic Island
• Resolution: 2796 x 1290 pixels at 460 ppi
• Brightness:
• 1000 nits (typical)
• 1600 nits (peak, HDR)
• 2000 nits (peak, outdoor)
• Features:
• Always-On display
• ProMotion technology with adaptive refresh rates up to 120Hz
• True Tone, Wide color (P3), HDR support
• Fingerprint-resistant oleophobic coating
• Protection: Ceramic Shield

Processor

• Chipset: Apple A16 Bionic
• CPU: 6-core CPU (2 performance cores + 4 efficiency cores)
• GPU: 5-core Apple GPU
• Neural Engine: 16-core, capable of 17 trillion operations per second

Memory and Storage

• RAM: 6 GB (LPDDR5)
• Storage Options: 128 GB, 256 GB, 512 GB, 1 TB (no expandable storage)

Cameras

• Rear Camera System: Triple camera setup
• 48 MP Main: 24 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 7-element lens, 100% Focus Pixels
• 12 MP Ultra Wide: 13 mm, ƒ/2.2 aperture, 120° field of view, 6-element lens, 100% Focus Pixels
• 12 MP 2x Telephoto (enabled by quad-pixel sensor): 48 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 7-element lens, 100% Focus Pixels
• 12 MP 3x Telephoto: 77 mm, ƒ/2.8 aperture, optical image stabilization, 6-element lens
• Zoom:
• 3x optical zoom in, 2x optical zoom out; 6x optical zoom range
• Digital zoom up to 15x
• Features: Photonic Engine, Deep Fusion, Smart HDR 4, Night mode, Cinematic mode (4K HDR up to 30 fps), Action mode, ProRAW, macro photography
• TrueDepth Front Camera:
• 12 MP, ƒ/1.9 aperture
• Features: Autofocus, Night mode, Cinematic mode, Smart HDR 4

Video Recording

• 4K at 24/25/30/60 fps
• 1080p HD at 25/30/60 fps
• 720p HD at 30 fps
• Cinematic mode up to 4K HDR at 30 fps
• Action mode up to 2.8K at 60 fps
• HDR with Dolby Vision up to 4K at 60 fps
• Slow-motion video up to 1080p at 240 fps

Battery

• Capacity: 4323 mAh (non-removable Li-Ion)
• Battery Life:
• Up to 29 hours of video playback
• Up to 25 hours of streamed video playback
• Up to 95 hours of audio playback
• Charging:
• Fast charging: Up to 50% charge in around 30 minutes with a 20W adapter (sold separately)
• MagSafe wireless charging up to 15W
• Qi wireless charging up to 7.5W
• Connector: USB-C to Lightning cable (Lightning port)

Design

• Dimensions: 160.7 mm (H) x 77.6 mm (W) x 7.85 mm (D)
• Weight: 240 grams (8.47 oz)
• Build: Stainless steel frame, textured matte glass back, Ceramic Shield front

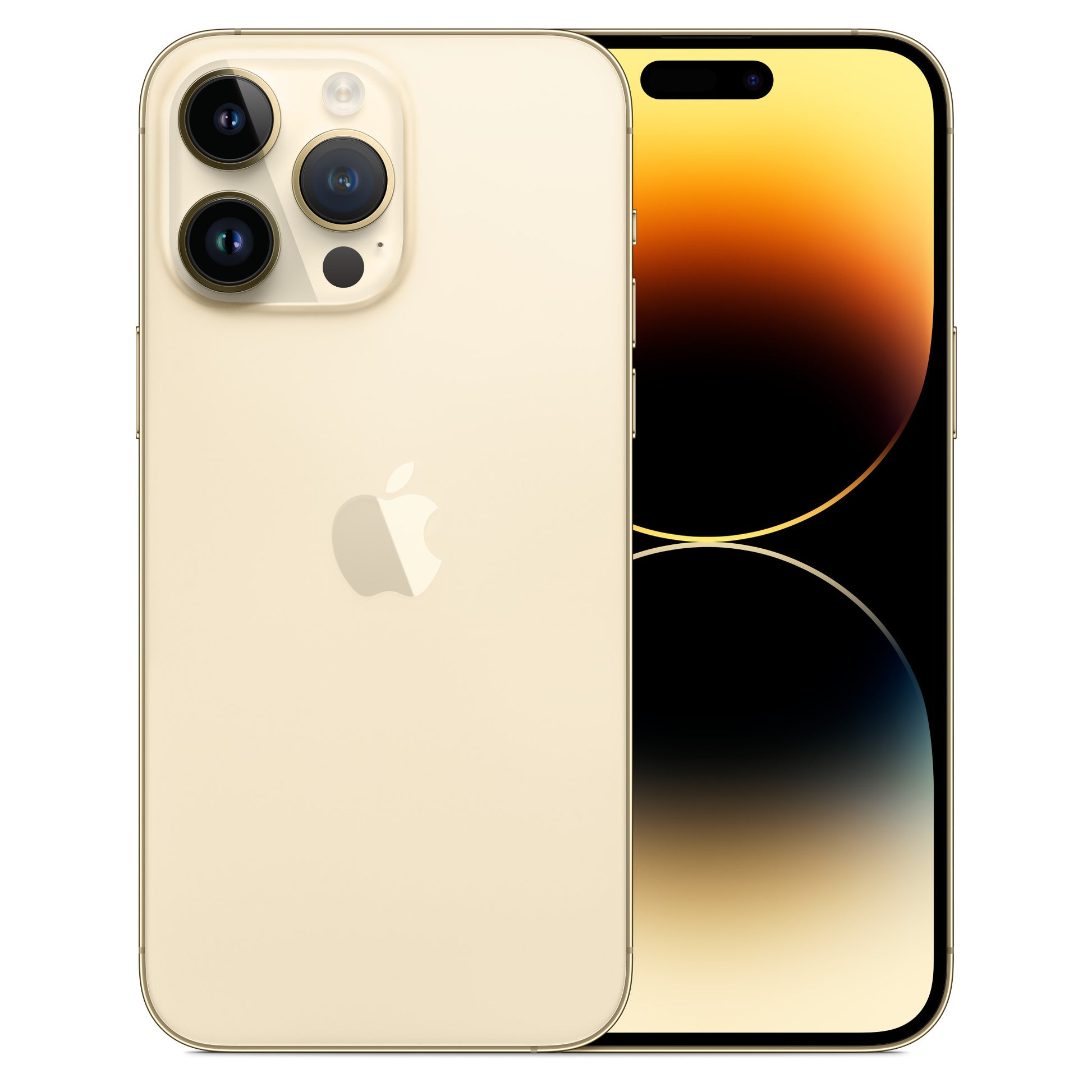

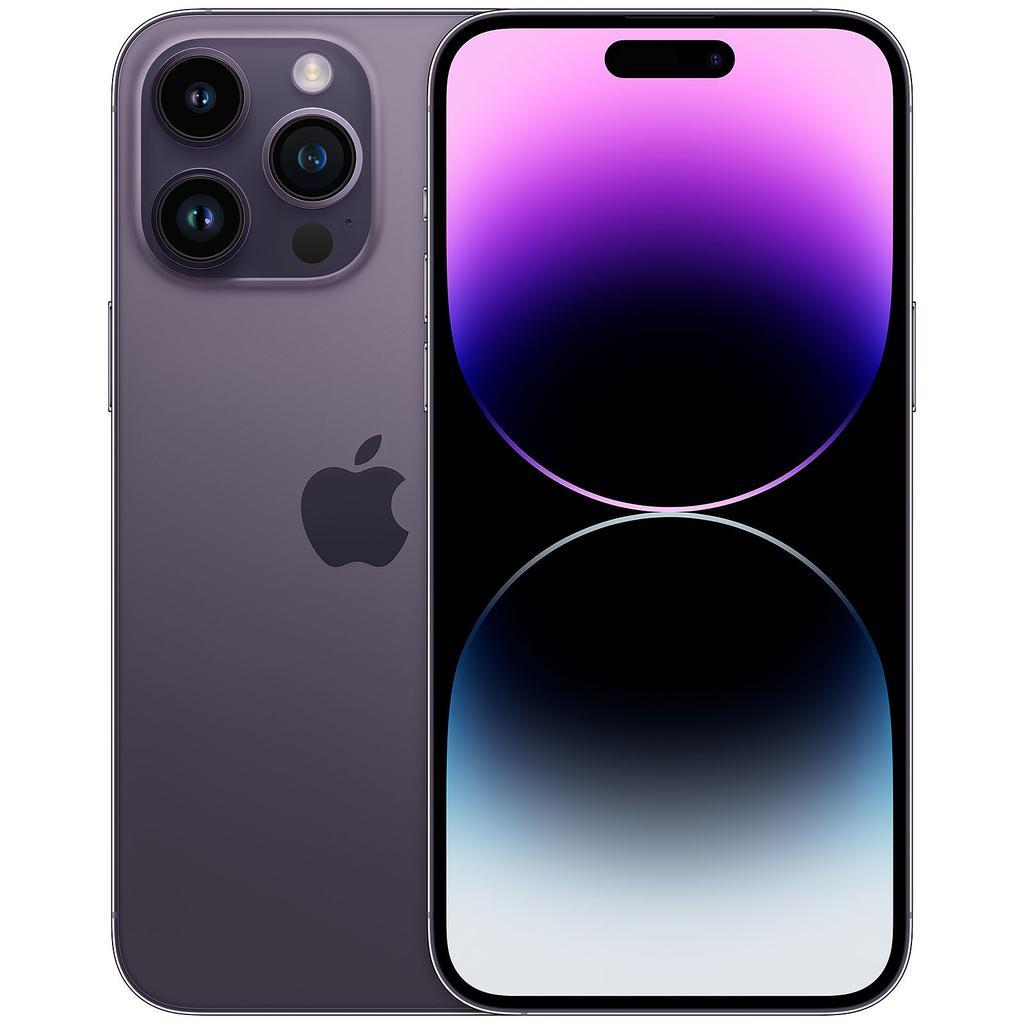

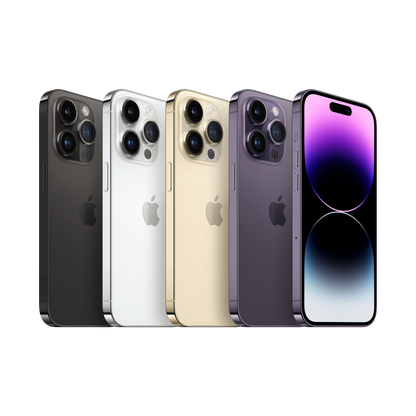

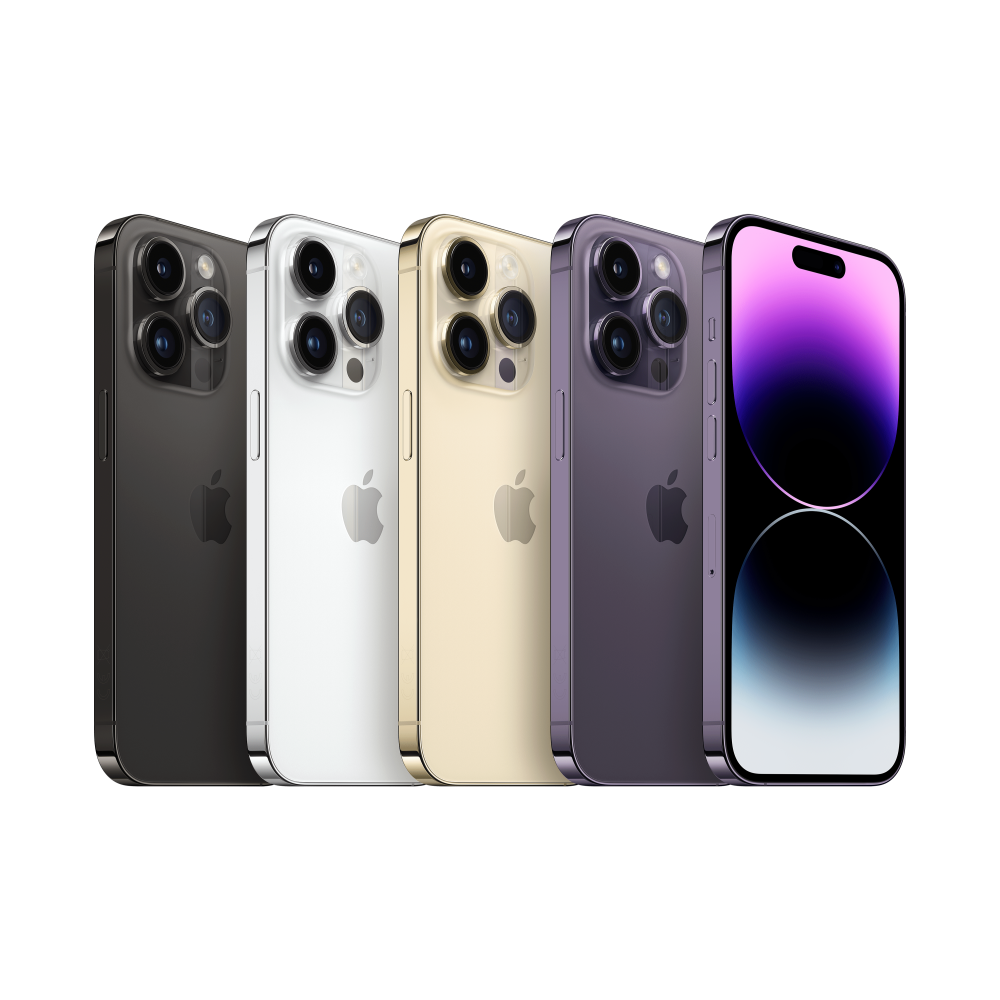

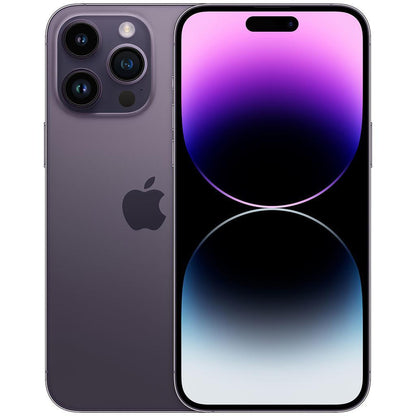

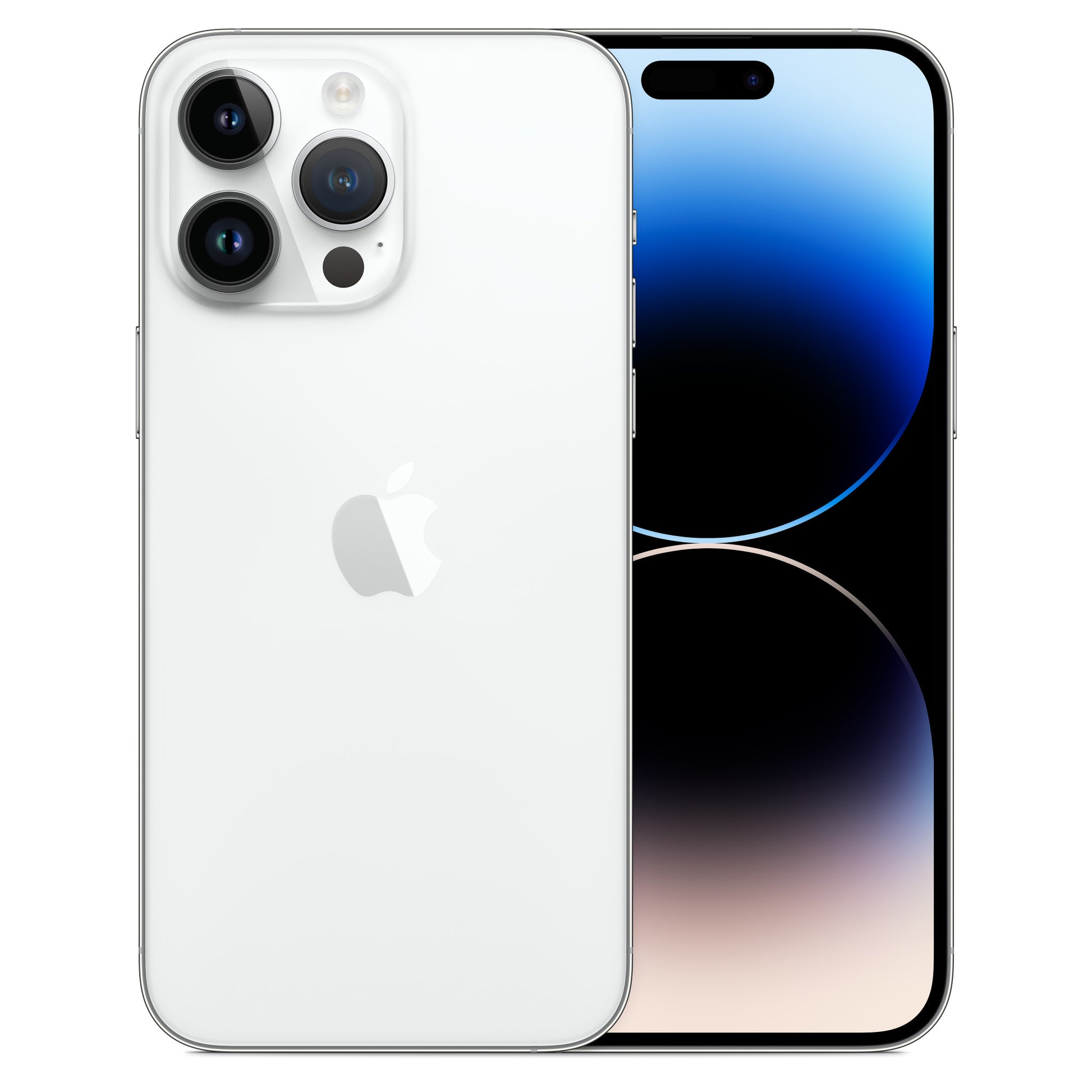

• Colors: Space Black, Silver, Gold, Deep Purple
• Durability: IP68 water and dust resistance (up to 6 meters for 30 minutes)

Connectivity

• Network: 5G (sub-6 GHz and mmWave in some regions), Gigabit LTE, VoLTE
• Wi-Fi: Wi-Fi 6 (802.11ax) with 2x2 MIMO
• Bluetooth: 5.3
• Ultra Wideband (UWB): Yes
• SIM: Dual eSIM support (physical SIM in some regions)
• Satellite: Emergency SOS via satellite (free for 2 years with activation)
• Other: GPS, GLONASS, Galileo, QZSS, BeiDent, NFC with reader mode

Operating System

• Initial OS: iOS 16
• Upgradable: Supports iOS 17, iOS 18 (as of current updates)

Additional Features

• Face ID: Enabled by TrueDepth camera
• Sensors: LiDAR Scanner, barometer, three-axis gyro, accelerometer, proximity sensor, ambient light sensor
• Audio: Stereo speakers, spatial audio playback, Dolby Atmos support
• Safety: Crash Detection, Emergency SOS
• Environmental:
• 100% recycled rare earth elements in magnets
• 100% recycled tungsten in Taptic Engine
• 100% recycled tin in solder of multiple components
